Last check before putting back the Quest

[avidairgunner]

Hello everyone, I posted a few weeks ago my troubles with a broken spring of the Quest. I ordered the JM E3650 spring and a small Apex (red) seal. I de-burred every part that was rough, including the top hat, rear guide, reviever, etc. Once I got the seal in, which btw took a lot of effort because the seal is a tag larger than the stock seal. Anyhow, I tarred the spring and before I push it all the way back in, I wanted to make sure that the spring is the correct length. Below are pictures for you to look at and as you can see there are about 6 coils sticking out. Is this okay? Or is the spring suppose to be a little shorte?. I do know that these springs have preload but I just want to make sure that if this is the correct length. Thank you to ALL (mikeinowa, tjk, Gene_SC, and everyone else whom I have not mentioned) who helped me with their guidance to get this project finished

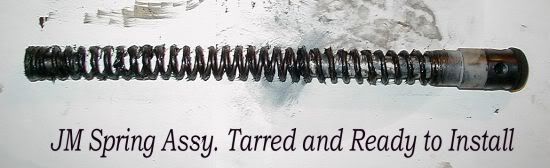

Here are two pics with and without flash

[JimL911]

If you didn't order your spring "set" it is going to be a little longer than the original. Once you cock it will "set" to the proper working length. I would remove about half the lube you have on your guide. Too much lube slows the action. If you used moly "less is more".

[Bentong]

I agree..too much grease is bad and it will find it's way to the front of the seal.

[avidairgunner]

Thanks you both. Yes what I have is Moly on the guide. I guess that needs to be removed a bit according to you. This is my first ever "tuning" project, so I didnt really know how much is too much What about the tarring of the spring? Is that good enough or needs more or less as well

[JimL911]

Wipe every other coil. Just remove a little from each and you should be fine. It will spread around when fired.

[D R Greysun]

It also appears to me that the rear spring guide is a bit small. There should be NO daylight between spring and guide. Same goes for the top-hat, you want a interference fit on both. Another thing to look at is the fit of the top-hat inside the piston. The one's I have found have a poor fit, major OD being undersize. Setting the spring with sloppy guide fit is a poor practice and could ruin the spring.



D R

[avidairgunner]

Oh man, a set of front and rear guide will cost around $28 from Rich. This addition places my current total in this project at $70 + 30 for the GRT III trigger, which is what I paid for the gun. I am thinking of just selling this gun as it is and move along. I put in about 4 hours just deburring this thing yesterday and if that is not tough, the brand new Apex seal got nicked and now I am down $18 because that is how much it costs for me to get one :0

[Bentong]

avidairgunner - 8/4/2009  7:01 PM  Oh man, a set of front and rear guide will cost around $28 from Rich. This addition places my current total in this project at $70 + 30 for the GRT III trigger, which is what I paid for the gun. I am thinking of just selling this gun as it is and move along. I put in about 4 hours just deburring this thing yesterday and if that is not tough, the brand new Apex seal got nicked and now I am down $18 because that is how much it costs for me to get one :0

After all this..your next air gun that needs fixing will be with no sweat.

[avidairgunner]

Bentong - 8/4/2009  7:31 PM

avidairgunner - 8/4/2009  7:01 PM  Oh man, a set of front and rear guide will cost around $28 from Rich. This addition places my current total in this project at $70 + 30 for the GRT III trigger, which is what I paid for the gun. I am thinking of just selling this gun as it is and move along. I put in about 4 hours just deburring this thing yesterday and if that is not tough, the brand new Apex seal got nicked and now I am down $18 because that is how much it costs for me to get one :0



After all this..your next air gun that needs fixing  will be with no sweat.

hehe i agree with that 100%

[Rontier]

So would you do a tune yourself again? & would you buy a Quest?













Big cat Gamo
Quest 1000

[avidairgunner]

Rontier - 9/21/2009  10:12 PM

So would you do a tune yourself again? & would you buy a Quest?





Big cat Gamo
Quest 1000

HEHE...well if you want to learn how to tune a gun, then yes I would buy a Quest because it is a good platform to learn from. However, if I were to recommend an airgun to a new-comer to this sport, I would recommend getting a RWS 34P and just enjoy that gun. It is inherently more accurate and is way better in QC, and if that is not enough, a self tune on the RWS with a Maccari kit would make it into a formidable opponent to the 300-400 dollar guns.

As for your question if I would do a tune again? Yes...HELL YES ....its fun, and you learn so much about your gun + the joy of shooting a tuned gun is something else, doesnt matter if it something as cheap as a Quest

[Rontier]

Thanks for the info.
Makes me a lot more worry free, & you right it's all about the knowlage of air gunning
happy shootin.

ron
